Brügmann window seal for UPVC windows 2497 TPE in black

Brügmann hose seal 2497 TPE

The window seal 2497 TPE is suitable for Brügmann and other window systems.
Please note the web height of 4 mm, otherwise similar to our seal 0176 TPE.

Dimensions

• Width: 6.0 mm
• Web width: 1.4 mm
• Base width: 4.5 mm
• total Height: 10.5 mm

Features about the material of our TPE gaskets can be found under the following link:
Properties and materials of window seals

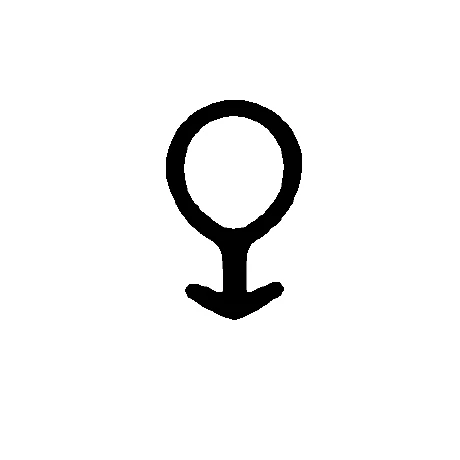

Detailed description of the structure:

• Circular section: The upper, circular section is the sealing body. This part of the window seal is compressed when the window is closed to ensure an airtight seal.
• Narrow neck: Starting from the seal body is the narrow web with a web width of 1.4 mm and web height of 4.0 mm. This part is pressed into the groove provided on the window and should be firmly seated in this device. The window seal should be firmly seated in the groove, which means that it can only be pulled out of the holder with a little pressure.
• Arrow pointing down: The web of the seal ends in an arrow pointing downwards, the so-called seal foot. This part ensures that the seal is held securely and prevents the rubber seal from moving or slipping out.

The shape of this window seal forms an effective barrier against air and water. The gasket body is compressed when the window is closed to ensure a tight seal, while the narrow web and gasket base ensure that the gasket sits securely in the frame and can adapt to different window positions.
